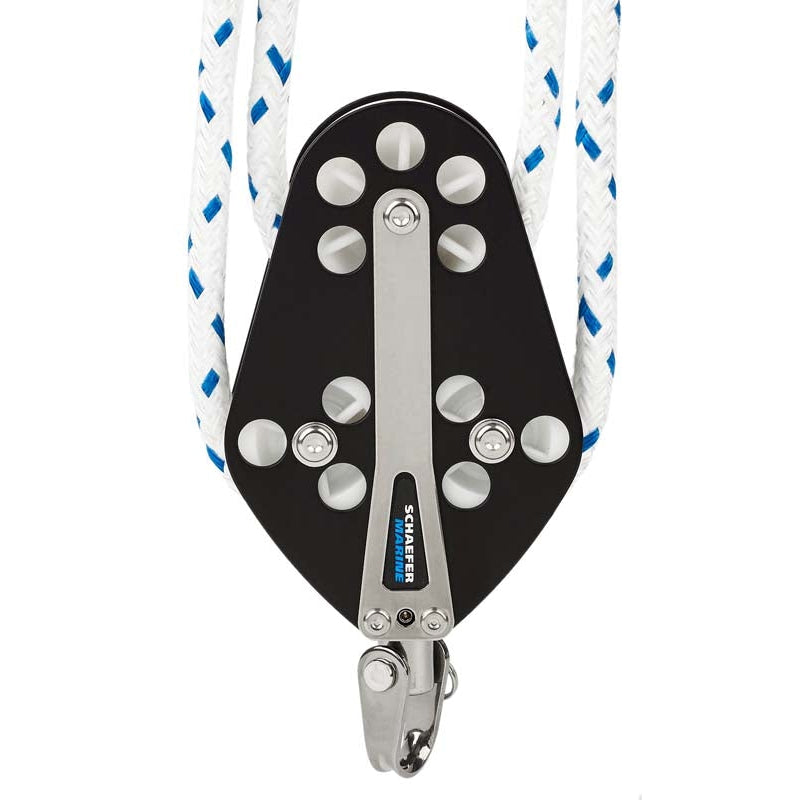

Aluminum Fiddle Block 704-45

704-45

Fiddle block with anodized aluminum cheeks. Works with 704-75 for a 4:1 purchase. Delrin(tm) sheaves feature a single top sheave and two in-line sheaves to spread the load reducing friction and chafe. Swivel head design may be locked in place to avoid twist. Upper Sheave Dia. 2 3/8" (60mm), Lower sheaves diameter 1-13/16" (46mm) Thickness 1 3/32" (28mm), Width 3 31/32" (101mm), Length 7 15/32" (190mm), SWL 2250 lbs. (1020kg), Weight 14.3oz(405g), Max Line 1/2" (13mm)

Schaefer Marine, Inc. warrants its standard catalog products to be free from factory defects in material and workmanship for a period of ten (10) years from the date of purchase, unless otherwise stated in this catalog or any other Schaefer Marine catalog. * Furling, Tuff Luff, and Windlass products have shorter warranties and are shown per product.

We offer free shipping on orders over $100. All other orders are shipped via UPS. For orders outside of the U.S., contact our sales team for custom quote: sales@schaefermarine.com

Fitting products to your boat is not one size fits all, feel free to reach out to our team for assistance at 508-995-9511 or sales@schaefermarine.com
